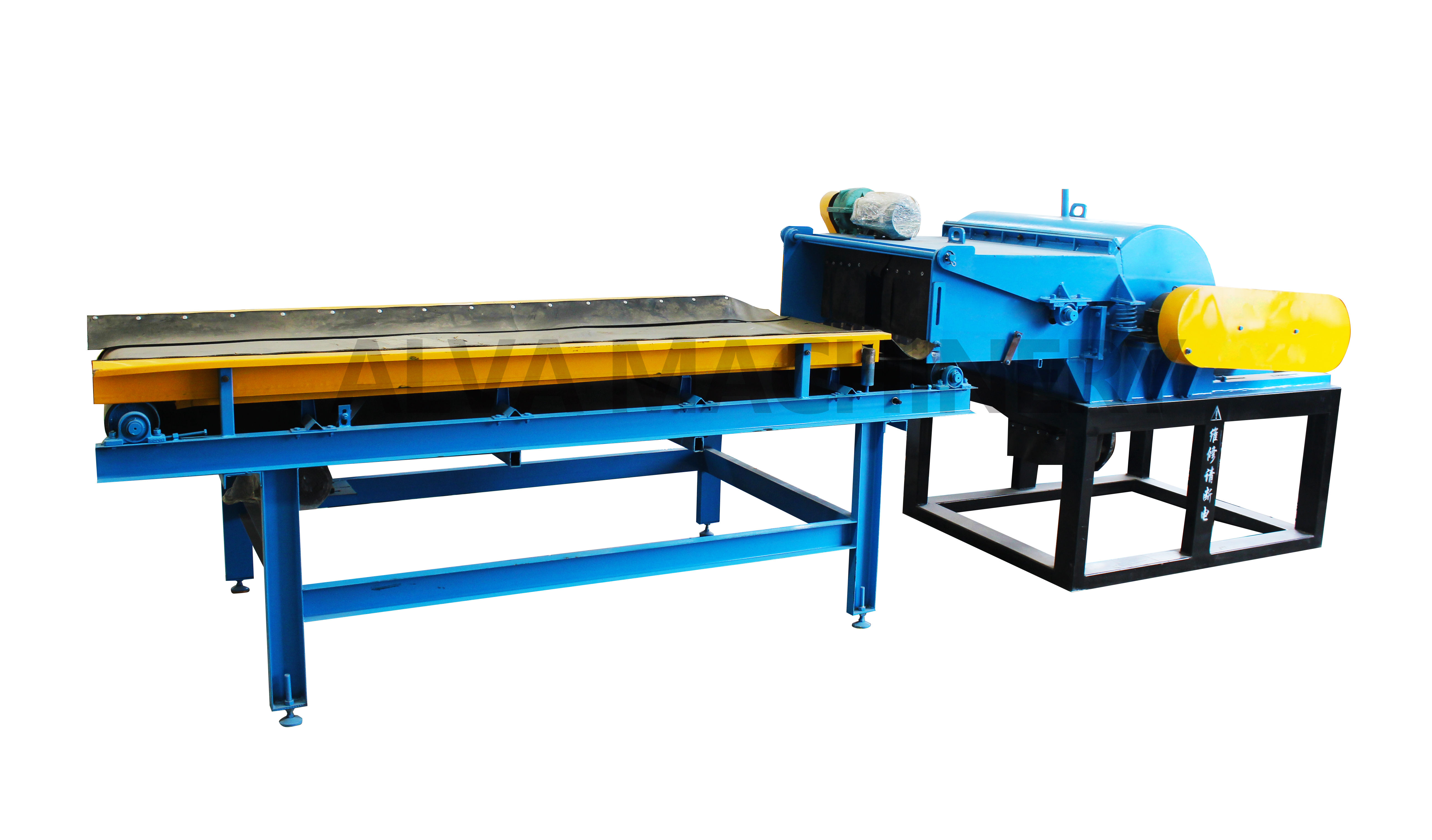

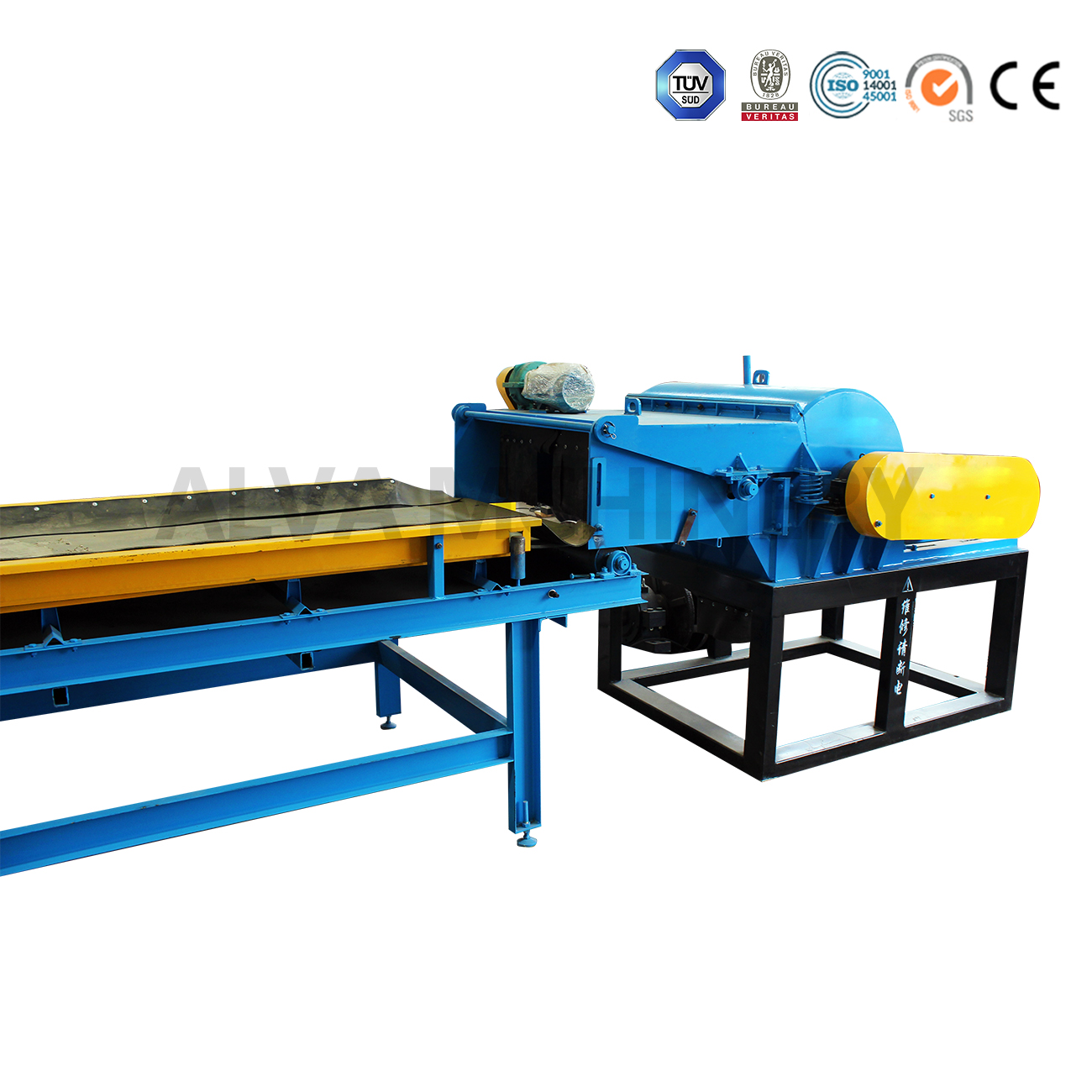

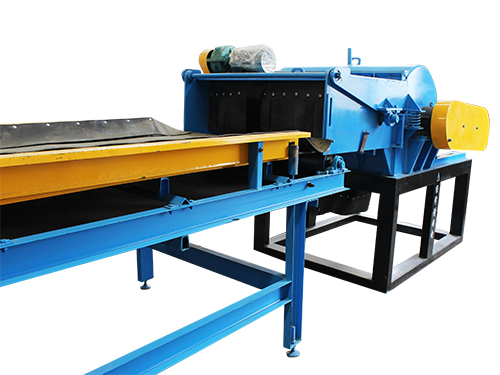

Automatic PVC crusher is a kind of equipment specially used for crushing PVC materials. It relies on the motor to drive the moving knife disc to rotate at high speed, forming relative motion with the fixed knife, and using the gap between them to shear and crush the PVC. The crushed material is filtered and output through the screen.
01
High degree of automation: equipped with automatic control system and automatic feeding device, you only need to set parameters and press the button to run, reducing manual operation.
02
High crushing efficiency: using advanced power system and sharp cutter, PVC materials can be quickly crushed into required particle size, with strong production capacity.
03
Strong adaptability: can handle PVC materials of various forms and hardness, such as pipes, plates, profiles, films, etc.
04
Safe and reliable: equipped with multiple safety protection devices, such as pulley protection cover, emergency brake button, etc., to avoid danger to operators.
| ITEM | UNIT | AGS850 | AGS1200 | AGS1500 | AGS2000 | |
| Cutting Chamber | mm | 840X1570 | 1120X1570 | 1400X1570 | 1960X1570 | |

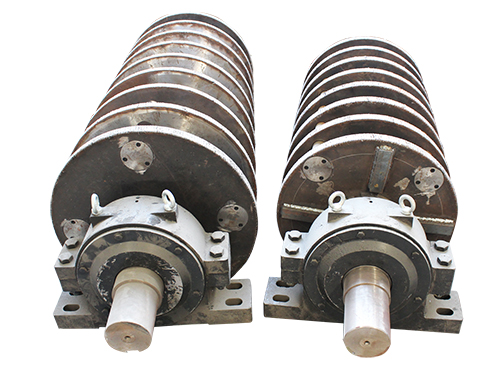

| Rotor Diameter | mm | 457 | 457 | 457 | 457 | |
| Rotor Speed | rpm | 74 | 74 | 74 | 74 | |
| Motor Power | kw | 37/45/55 | 55 | 75 | 2X55/2X75 | |
| Rotor Knives | pcs | 60 | 81 | 102 | 144 | |
| Stator Knives | pcs | 2X3 | 2X4 | 2X5 | 2X7 | |
| Hydraulic Ram Power | kw | 3.75 | 5.6 | 5.6 | 5.6 | |

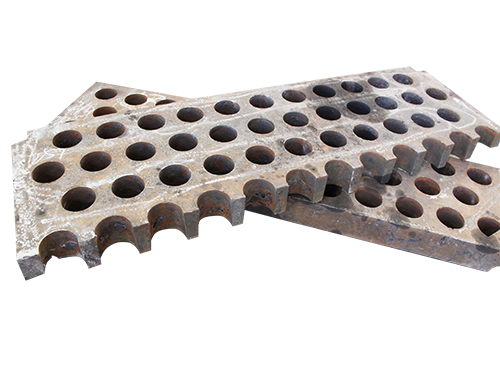

| Screen Size | mm | 40-100 | 40-100 | 40-100 | 40-100 | |
| Shredding Chamber Size | mm | 800X730 | 800X1000 | 800X1290 | 800X1860 | |
| Dimensions | A | mm | 2300 | 2300 | 2300 | 2300 |
| B | mm | 1650 | 1650 | 1650 | 1650 | |
| C | mm | 540 | 540 | 540 | 540 | |
| D | mm | 660 | 660 | 660 | 660 | |
| E | mm | 2250 | 2250 | 2250 | 2250 | |
| F | mm | 350 | 350 | 350 | 350 | |
| G | mm | 2000 | 2280 | 2600 | 3720 | |
1. Plastic recycling industry: Crush waste PVC products into small pieces or particles to facilitate subsequent cleaning, granulation and other recycling processes.
2. Plastic product processing enterprises: Crush the scraps and waste generated during the production process, and re-use them as raw materials in production to reduce costs.
3. Construction industry: Can be used to crush discarded PVC pipes, door and window profiles, etc. to achieve resource reuse.
4. Wire and cable industry: Crush waste PVC cable materials to provide raw materials for recycling metals and producing recycled plastics.
When using the automatic PVC crusher, first check all parts of the equipment to make sure there is no abnormality before turning on the power. Set the crushing parameters on the control interface, such as speed, time, etc. Place the PVC material on the automatic feeding device, and the material will enter the crusher at a uniform speed. Monitor the equipment during operation, turn off the power after completion, and clean up the residual materials and equipment.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
