Shandong Alva Machinery Co., Ltd. has focused on the woodworking machinery field for 30 years. Adhering to the corporate tenet of “Creating value for customers and benefits for partners”, the company takes “Product quality is produced, not inspected” as its core business philosophy. Every product undergoes research and development, practical application and strict quality inspection.

With reliable quality, its products have passed multiple international authoritative certifications including CE and SGS, and are sold well in both domestic and foreign markets. They not only occupy a significant position in the domestic woodworking machinery sector, but also successfully completed the installation and commissioning of veneer peeling machine production lines in Vietnam and other regions, helping local enterprises enhance their production capacity and market competitiveness.

Meanwhile, the company has established a comprehensive service system, providing services such as overseas equipment installation and commissioning, operator training, and 24-hour online consultation. Both the whole machine and key components are covered by warranty, with the after-sales team responding within 48 hours. In addition, the company offers product customization and personalized packaging services to fully meet the needs of customers at home and abroad.

/Product Description/

Wood pellet machines are core equipment that process agricultural and forestry waste, such as sawdust, straw, and branches, into standardized pellet fuel through a series of processes, including crushing, extrusion, and molding. These machines are widely used in biomass energy, livestock bedding, and gardening substrates.

Utilizing precise transmission and wear-resistant molds, these machines can reliably process a variety of wood materials. The resulting pellets have high density and a stable calorific value. This not only enables the resource utilization of agricultural and forestry waste, reduces environmental pollution, but also provides a high-quality solution for clean energy alternatives. Furthermore, the equipment features automated operation and easy maintenance, adapting to varying production capacity requirements, helping businesses reduce costs and increase efficiency, while promoting the development of a green, circular economy.

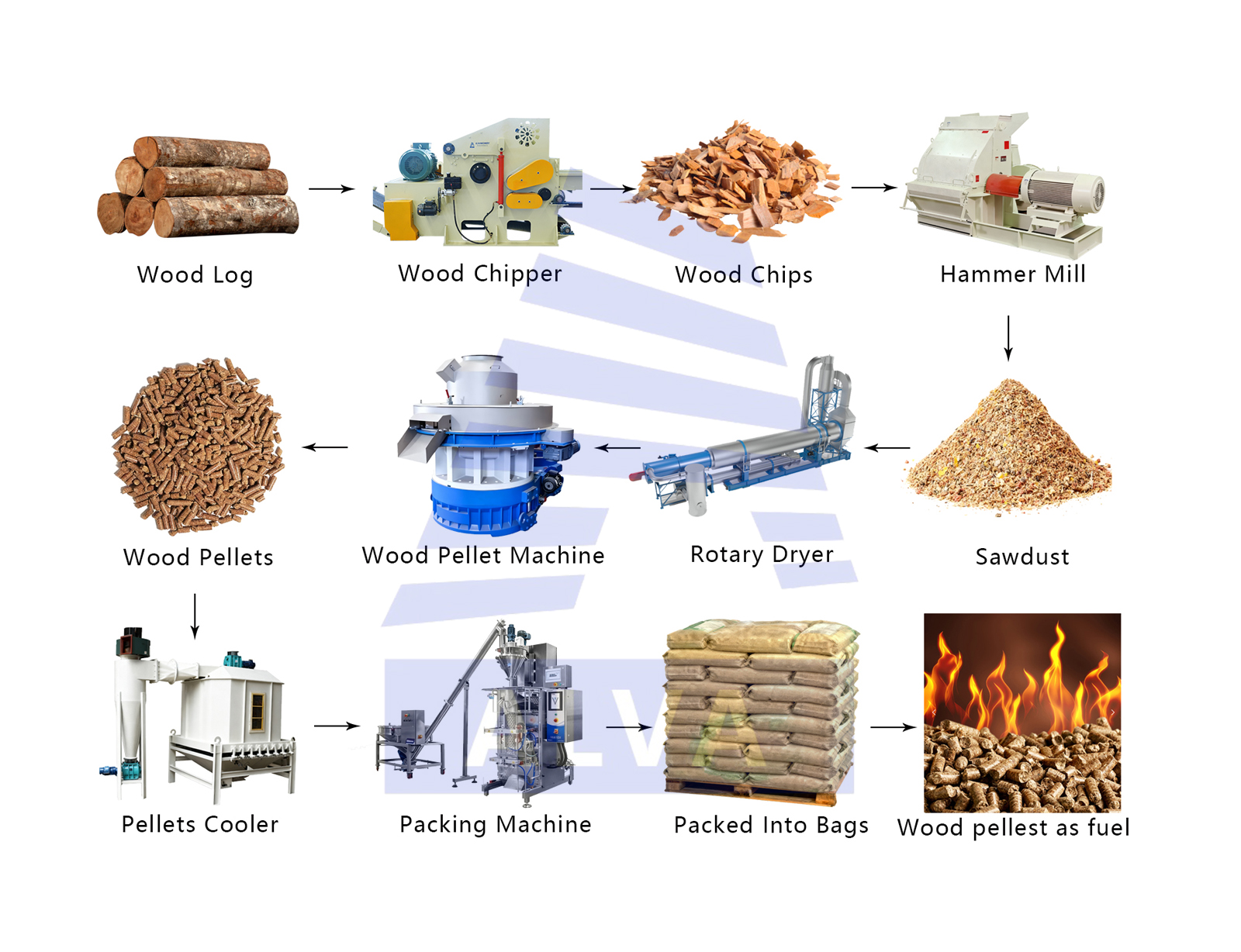

/Production Process/

  1. Raw Material Pretreatment

• Crushing: Crush raw materials such as straw, wood chips, and dead branches into small particles of 3-5 mm to ensure uniform feeding.
• Drying: Control the moisture content of raw materials at 10%-15% through a dryer to avoid cracking and looseness after forming.
• Mixing (Optional): Add binders or other auxiliary materials as needed to improve particle adhesion.

   2. Extrusion Molding

• Feeding: The pretreated raw materials are uniformly fed into the main engine extrusion chamber through the silo and screw feeder.
• High-temperature and High-pressure Extrusion: Under the extrusion of press rollers and ring dies (or flat dies), the temperature of raw materials rises to 100-120℃, the fiber structure is reorganized and pressed into die holes.
• Pellet Cutting: The continuous rod-shaped materials extruded from the die holes are cut into pellets of set length (usually 6-10 mm) by cutters.

    3. Post-treatment

• Cooling: The newly formed pellets have high temperature and slightly high moisture content. They are cooled to room temperature by a cooler (mainly air-cooled) to improve stability.
• Screening: Unqualified crushed particles and powder are separated by a vibrating screen, and qualified pellets enter the finished product warehouse.
• Packaging: Weigh and pack according to specifications for easy storage and transportation.
